Call logs

Call Logs are a feature which allows users to know the call history for the audio and video of incoming, outgoing and group.

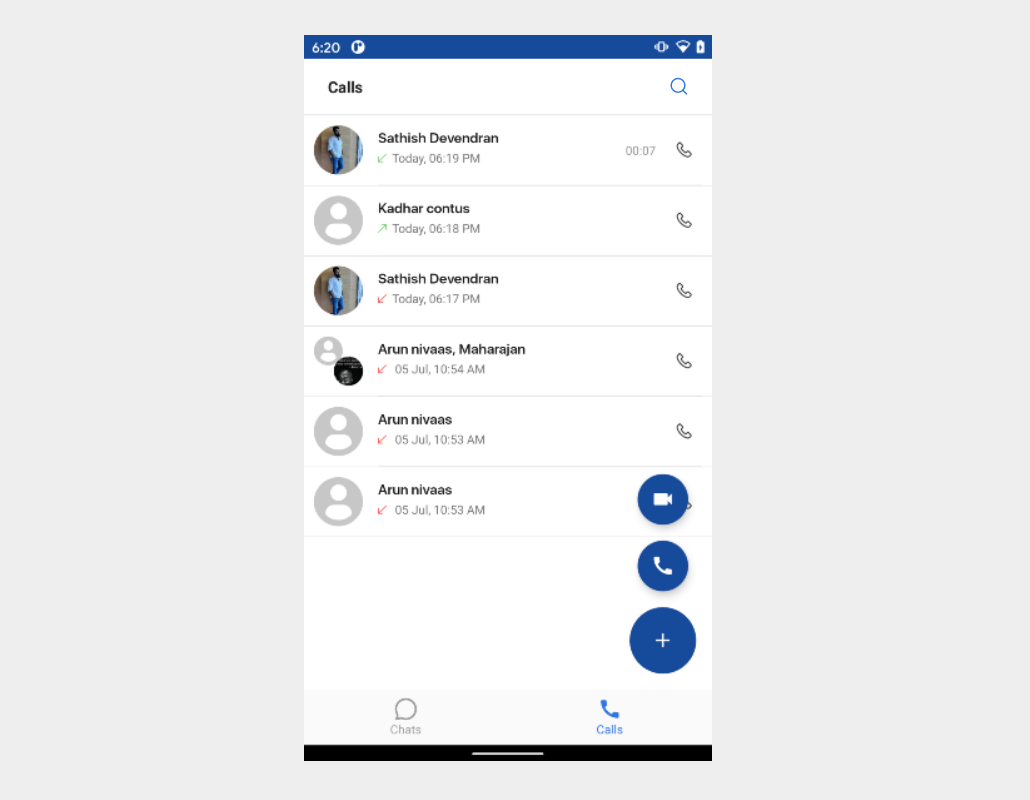

Call log list

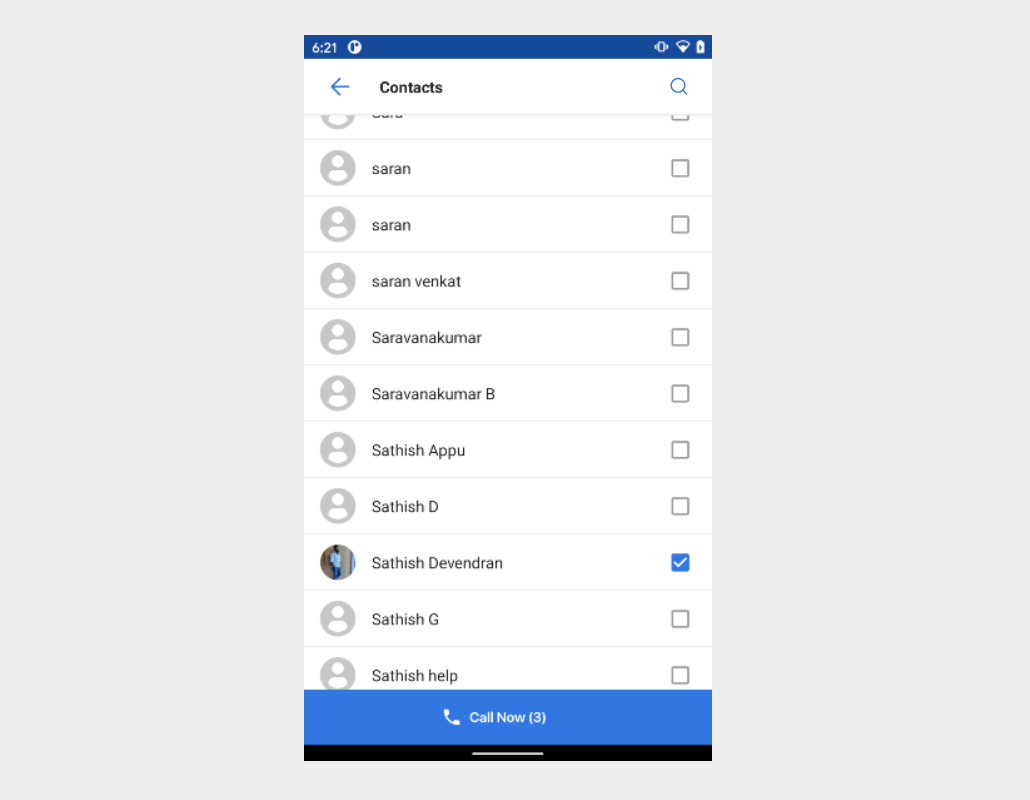

Single or Group Call

StyleSet

StyleSet is the list of styles provided by MirrorFly UIKit. Customizing the style of Call Logs list items is straightforward: Simply inherit the MirrorFly UIKit-defined styles, then override the res/values/styles.xml or res/values/themes.xml file from the list below.

<resources xmlns:tools="http://schemas.android.com/tools">

<!-- Base application theme. -->

<style name="Theme.MFUIKITTest" parent="Theme.MaterialComponents.DayNight.NoActionBar">

<item name="colorPrimary">@color/purple_500</item>

<item name="colorPrimaryVariant">@color/purple_700</item>

<item name="colorAccent">@color/primary_300</item>

<item name="colorOnPrimary">@color/white</item>

<item name="colorSecondary">@color/teal_200</item>

<item name="colorSecondaryVariant">@color/teal_700</item>

<item name="colorOnSecondary">@color/black</item>

<item name="android:statusBarColor" tools:targetApi="l">?attr/colorPrimaryVariant</item>

<!-- UIKit Call Log style theme. -->

<item name="mf_appbar_style">@style/Widget.MirrorFly.AppBar</item>

<item name="mf_recycler_view_style">@style/Widget.MirrorFly.RecyclerView</item>

</style>

</resources>

StringSet

Listed below are all the strings used in UIKit Message Info for Android. Strings can be changed by overwriting the res/values/strings.xml files with the same name.

<string name="mf_text_header_calls">Calls</string>

<string name="mf_text_header_chat_list">Chats</string>

IconSet

Listed below are all the icons used in UIKit Message Info for Android. Icons can be changed by overwriting the res/drawable files with the same name.

Icon name	Image	Description
ic_arrow_down_red		Icon of Missed Call.
ic_arrow_down_green		Icon of Incoming Call.
ic_arrow_up_green		Icon of Outgoing Call.
ic_fab_add		Icon to make audio and video Call.
ic_fab_voice_call		Icon to make Audio Call.
ic_fab_video_call		Icon to make Video Call.
